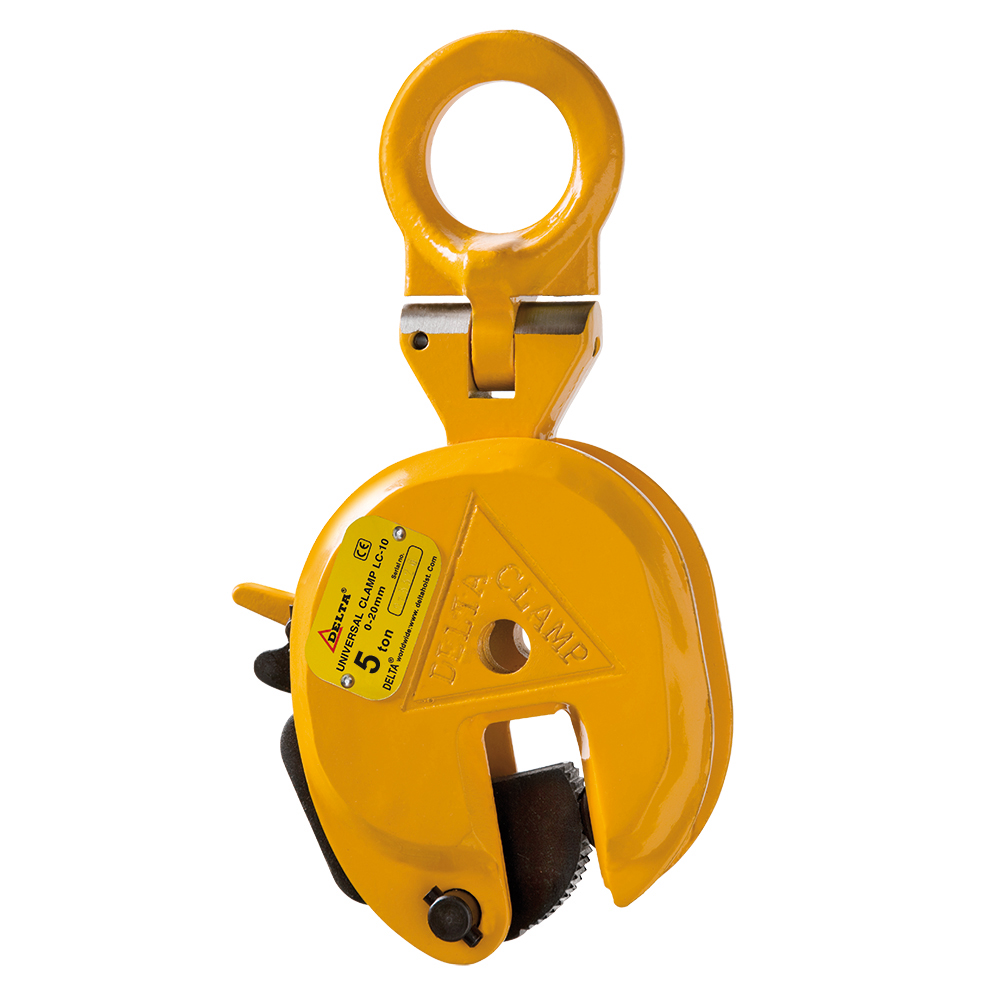

DELTA Universal plate clamp - 5 ton
Item Code: DC.0.020005000EAN: 8719482247460
DELTA Universal plate clamp - 5 ton
Capacity - WLL ton:5 ton
Jaw range:0-50 mm
» Suitable for lifting and handling steel plates or -beams.
» Hardened jaws.
» With lock for open and closed position.
» Designed for sheets with a surface hardness of up to HRC 37.
» Minimum load: 10% of WLL. 5% at HRC < 27.
» Complies with the Machinery Directive 2006/42/EC. Supplied with test certificate,CE declaration of conformity and operating instructions.
Specifications
| Capacity - WLL ton | 5 ton |
| Jaw range | 0-50 mm |
