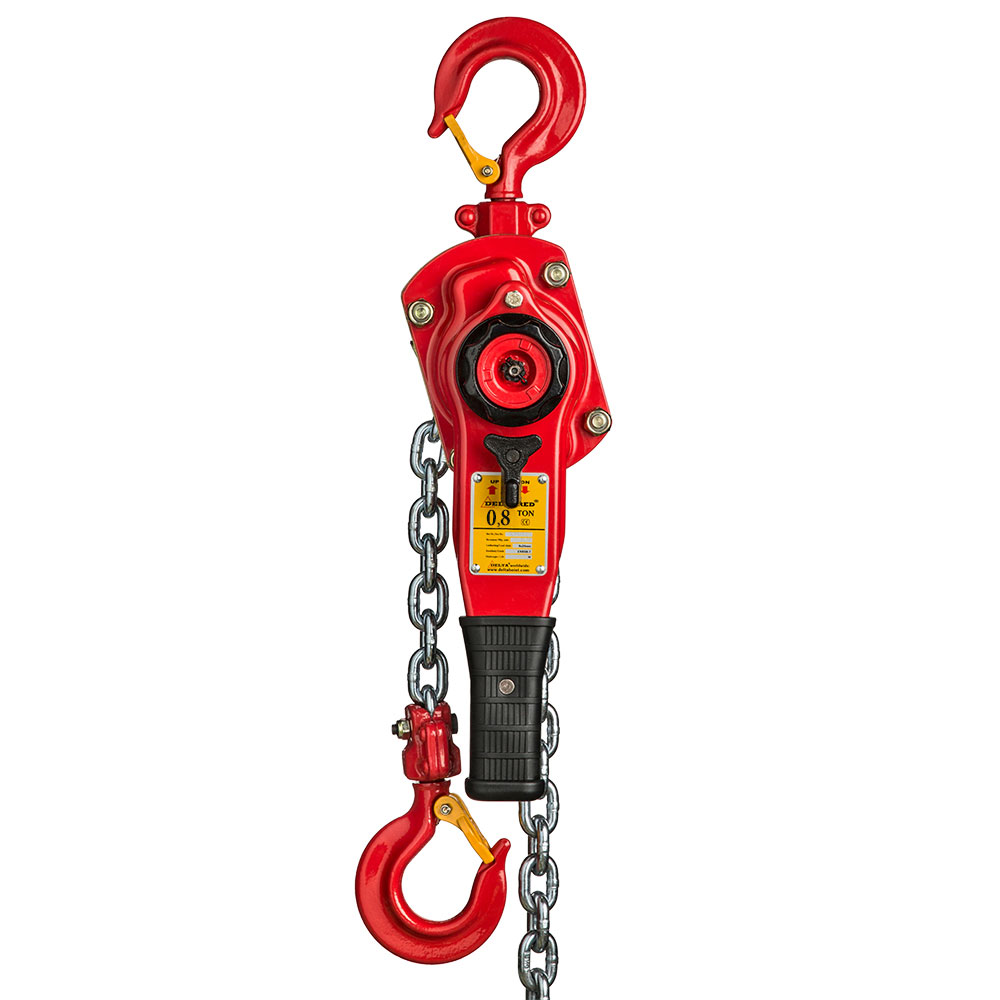

DELTA RED – Premium lever hoist – 0,8 ton – with overload protectionDR.0.0520800.OP
» Maintenance friendly design. Brake and transmission are easy to access.
» The transmission is supported by high-quality bearings.
» Precision machined shafts, chain sprocket and gears ensure smooth operation.
» High strength double casing provides protection against dust and water.
» Robust housing endures external shock without damage to the bearing alignment.
» Ergonomic lever with rubber sleeve.
» Optimised load chain guidance system.
» With slip clutch overload protection.
» Enhanced free spooling mode (pull out hand wheel).
» No minimum preload required to activate ratchet mechanism.
» Enhanced corrosion resistant, caged bearings.
» Compact lever reduces weight and enables narrow space operation.
» Cast steel hand wheel provides better performance.
» 1.5 and 3 meter hoisting height are standard stock items. Other hoisting heights upon request.
» Complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.
Specifications for DELTA RED – Premium lever hoist – 0,8 ton – with overload protection
|Model||Delta Red with overload protectionq|
|WLL ton||0,8 ton, 0,8 ton|
