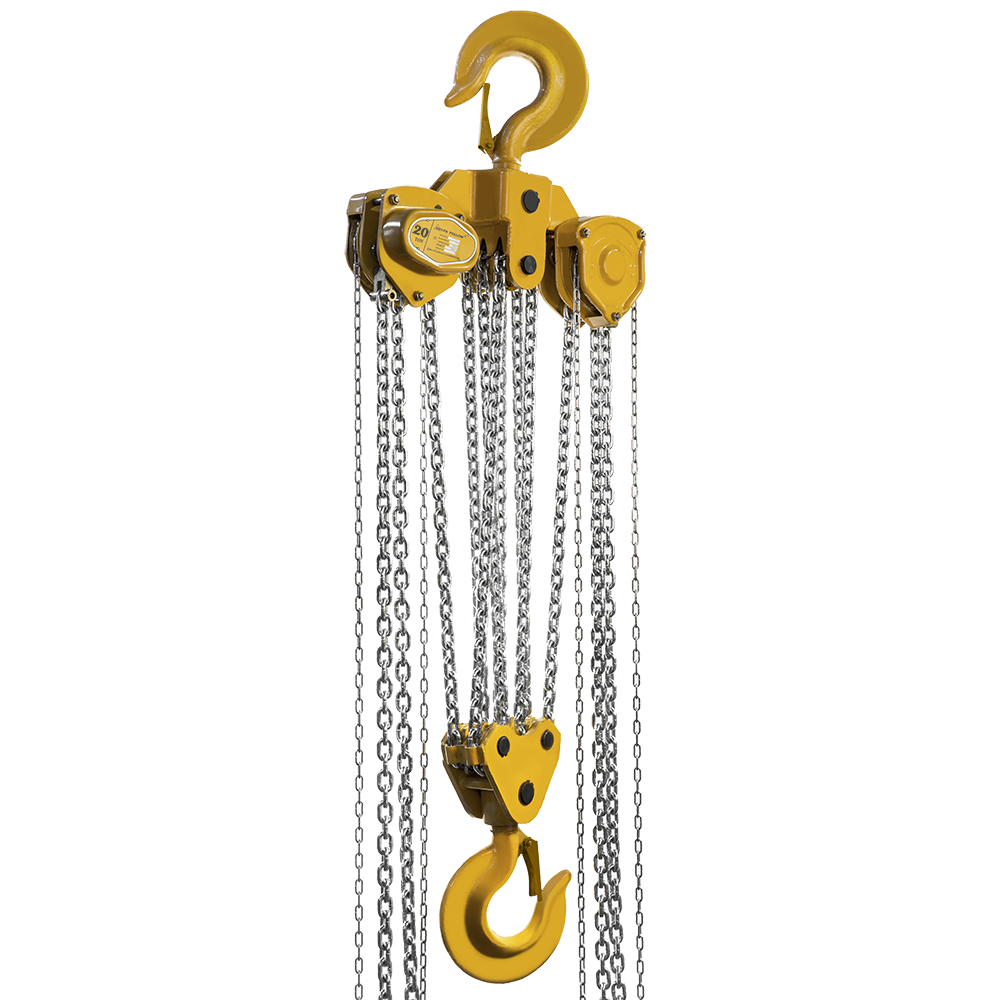

DELTA YELLOW – Manual chain hoist – 20 ton – with 10 meter hoisting height

Item Code: DY.0.04420010
EAN: 8719482266287
https://www.deltahoist.com/web/image/product.template/31911/image_1920?unique=7a25801

Log in for more information, or contact us.

  • Model
  • WLL ton
  • Hoisting height

Quantity per box : 1

This combination does not exist.

DELTA YELLOW – Manual chain hoist – 20 ton – with 10 meter hoisting height

  • Model
  • WLL ton
  • Hoisting height

Log in for more information, or contact us.

This combination does not exist.


Model:Delta Yellow
WLL ton:20 ton
Hoisting height:10 meter


» Maintenance friendly design. Brake and transmission are easy to access.

» The transmission is supported by high-quality bearings.

» Precision machined shafts, chain sprocket and gears ensure smooth operation.

» High strength double casing provides protection against dust and water.

» Robust housing endures external shock without damage to the bearing alignment.

» 3, 6 and 10 meter hoisting height are standard stock items. Other hoisting heights upon request.

» Complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.


Specifications

Model Delta Yellow
WLL ton 20 ton
Hoisting height 10 meter
