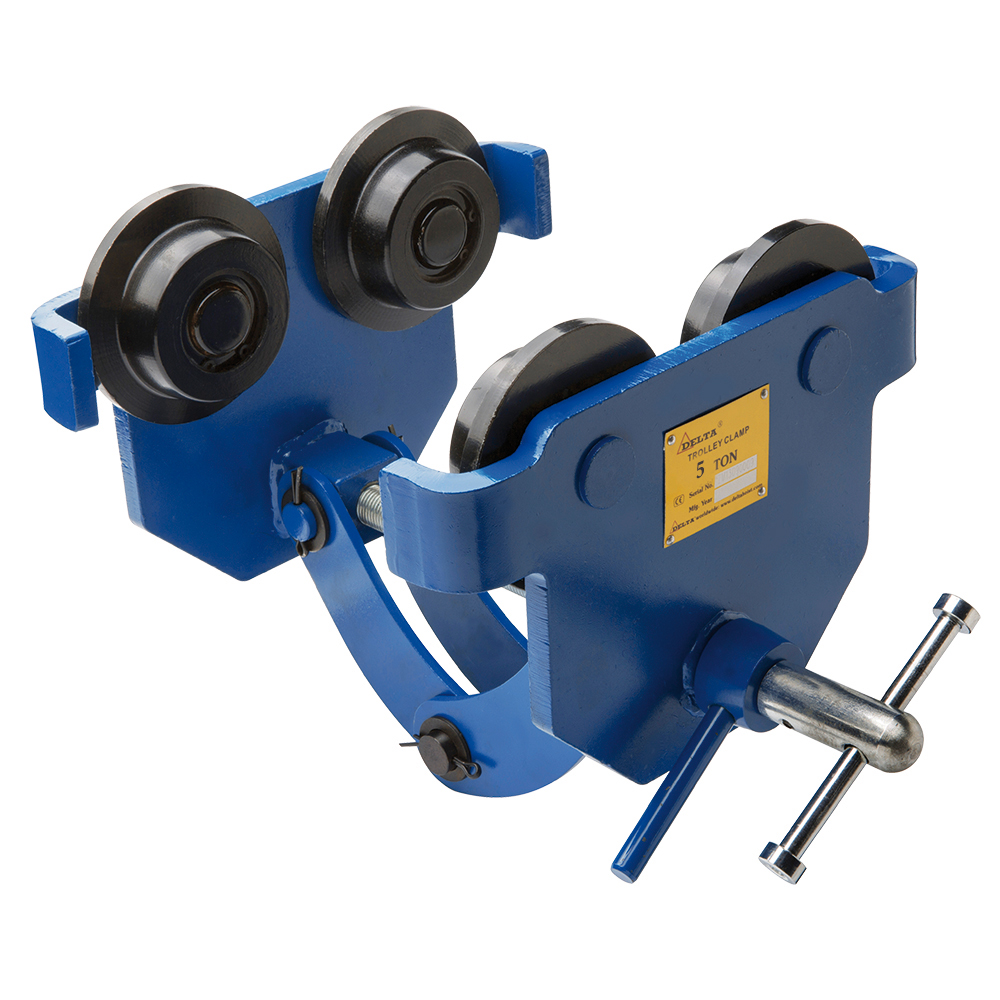

DELTA BLUE - Trolley clamp - 5 ton

Item Code: ZM.LHTP.050C
EAN: 8719482316647
https://www.deltahoist.com/web/image/product.template/34885/image_1920?unique=d749804

Log in for more information, or contact us.

  • Capacity - WLL ton
  • Beam width

Quantity per box : 1

This combination does not exist.

DELTA BLUE - Trolley clamp - 5 ton

  • Capacity - WLL ton
  • Beam width

Log in for more information, or contact us.

This combination does not exist.


Capacity - WLL ton:5 ton
Beam width:100-305 mm



» Extremely shortened assembly times. Ideal for fast applications that require load traversing.

» Individually adjustable by turning the threaded bolt. Secured by second counter safety lever.

» Safety bars serve as fall-, breaking- and impact protection.

» Permanently lubricated, ball bearing mounted wheels allow for smooth traversing.

» Suitable for most I- and H-beam profiles.

» Complies with the Machinery Directive 2006/42/EC. Supplied with test certificate, CE declaration of conformity and operating instructions.

Specifications

Capacity - WLL ton 5 ton
Beam width 100-305 mm
